Modulation Schemes: Moving Digital Data with Analog Signals

Modulations are the techniques to carry digital data over analog waveforms. This rather arcane subject has been brought to the forefront of the DSP, EE, and telecommunications worlds by the ongoing interest in broadband communications, specifically, the great opportunity represented by bringing low cost broadband communications to the home. Think what it would be like to log on to the Internet or to the corporate LAN at speeds of over a megabit per second. The potential is enormous. The phone companies are approaching this opportunity with a grab bag of technologies known as DSL, digital subscriber loops. Many articles have appeared recently on ADSL, RDSL, SDSL, HDSL, MDSL, and VDSL. These will be covered in more depth in future newsletters. The cable companies are offering broadband services with cable modems. In either case, modulations are one of the fundamental technologies.

Analog modulation processes perform their magic by changing one or more of the three characteristics of a sine wave: amplitude, frequency, and phase.

Digital modulation applies a digital data stream to the carrier and makes the data stream compatible with the RF communications channel. Each wave state generated in this way represents one symbol of data (each symbol is an N-bit word where N is a power of two from 1 to 8, depending on the technology used). The resulting modulations schemes are called amplitude shift keying, frequency shift keying, and phase shift keying. In RF communications however, the two main approaches are phase shift (constant amplitude) and amplitude shift. The number of symbols per second transmitted is known as the baud rate. The number of bits per second equals (symbols per second) multiplied by (bits per symbol).

When it comes to modulations, the lack of standards becomes quite evident. A hodgepodge of modulation techniques with a range of price/performance features are in use today, although the cable modem industry seems to be settling on a de-facto turn to a 64-QAM (N=6) or 256-QAM (N=8) delivery model for downstream data, and QPSK for a moderate bit-rate return path.

All modulation schemes can be judged by their spectral efficiency and by their error rates. Spectral efficiency is the input digital rate divided by the allocated RF channel bandwidth. The unit of measure is "bits/Hz." The error rate (usually failed bits per million or bits per billion of "good" bits) is a function of several factors, including susceptibility to noise and interference, susceptibility to fading, and non-linearity, which can arise due to dependencies on signal frequency and amplitude. In general, as spectral efficiency increases, so unfortunately does the error rate, which means a higher signal-to-noise ratio might be needed to achieve acceptable error rates.

There are several ways to achieve more than one bit/Hz of throughput. Instead of simple binary encoding, the system can define four different voltages or phases for a single wave cycle, allowing one cycle to represent a two-bit symbol. If both phase and amplitude can vary simultaneously over four values, then one cycle can represent one of 16 discrete logical states. This squeezes 4 bits of data into a single wave cycle, or 4 bits/Hz. Much of the work on modulation techniques currently benefiting the cable modem industry stems from interest in digital video and from technology developed for telephony. While MPEG-2 is becoming the digital video standard for the broadcast industry, digital modulation techniques allow vendors to squeeze 6 or more digital channels into the 6 MHz space normally used for a single analog channel. This is one of digital video's major benefits (and is the basis for much of the talk about 500 cable channels in the future).

The set of available transmission symbols in a particular modulation scheme is known as its alphabet while a graph of the alphabet on a complex plane is known as the constellation (see examples below). After symbols have been formed and converted to complex numbers, the constellation diagram is drawn by plotting the real part, I, and complex (or imaginary) part, Q, on a 2-D map.

SKD121X Encoding & Multiplexing Modulator

Household Universal Encoding & Modulation Modulator

SKD81 IP Set Top Box

Carrierless Amplitude Modulation/Phase Modulation (CAP)
CAP is a bandwidth-efficient two-dimensional pass band line code derived from QAM by AT&T Bell Labs as part of an effort to produce a variant of QAM that could be efficiently implemented on a digital signal processor. 16-CAP has been adopted by DAVIC, the Digital Audio-Visual Interoperability Council, for interactive TV and video-on-demand applications and is proposed for SVD systems. In 16-CAP, blocks of four bits are mapped into one of 16 possible 2-D symbols in each symbol period. Two bits represent the quadrant, two bits identify a symbol within the quadrant. Increasing the number of bits per symbol increases bandwidth efficiency. But the modulation scheme also becomes more sensitive to noise. This is the basis of any modulation tradeoff. In Switched Digital Video systems, 16-CAP squeezes 51.84 Mbps into a downstream signal occupying approximately 20 MHz of bandwidth.

Code Division Multiple Access (CDMA)
CDMA is a form of spread spectrum transmission which works by coding and spreading the information to be transmitted over a wide band. CDMA is asynchronous, and typically uses a 30 MHz bandwidth. CDMA used by some vendors, like Zenith and Cisco, who believe the spread spectrum approach to be superior in noisy upstream environments. Maximum digital bandwidth is approximately 10 Mbps over cable.

Coded Orthogonal Frequency Division Multiplexing (COFDM)
COFDM is an experimental approach, intended for broadcast TV, which works by taking the transmitted data and spreading it over a large number of carriers, rather than modulating it all onto a single carrier. Hence, COFDM creates a large number of parallel paths, each of which carries data at a slower rate than the overall signal. The longer symbol times are more resistant to system noise. The data on the carriers can be modulated using one of the standard digital modulation schemes such as QPSK, 16-QAM, 64-QAM, or 256-QAM. Data is spread redundantly over many carriers so that a loss of some carriers leads only to loss of an occasional bit, a problem which can be corrected for at the receiving (forward-error correction) end. ADC Telecom uses orthogonal frequency division multiplexing for its cable-based telephony product to modulate 240 individual DS0 channels into a 5MHz spectrum with 0.5 MHz guardband on either side. This is very attractive to a cable operator with only 18 MHz usable upstream bandwidth. While OFDM has many advantages, it requires more signal processing horsepower at the headend than do some of the other modulation techniques.

Figure 1: OFDM breaks the channel into many subchannels and shifts traffic to a clear channel when needed.

Quadrature Amplitude Modulation (QAM)
QAM systems combine PSK and ASK to increase the number of states per symbol. QAM is a proven technique for the transmission of digital data over a wide range of channels from voice band modems at 9600 bps to microwave links transmitting hundreds of Mbps. QAM is also the modulation technique used by V.34 modems. Each symbol value represents multiple bits. 16-QAM carries 4 bits per symbol while 256-QAM carries 8 bits per symbol. The signal-to-noise ratio at the receiver determines the QAM level that can be used reliably on a given transmission channel. Typical terrestrial and cable channels allow 16-QAM and 256-QAM, leading to digital data rates of approximately 20 and 40 Mbps, respectively.

In a typical cable TV application, 64-QAM can squeeze a 30 Mbps data stream into a 6 MHz (bandwidth) TV channel. QAM is also of use for digital video broadcast. Note that for video-on-demand or MPEG-based broadcast video delivery, 64-QAM allows five channels of 6 Mbps video for each analog channel allocation. For telephony, which uses 64 kbps data streams, a single "video channel" could handle over 450 downstream phone calls, which would be time-division multiplexed within the DataStream. Hence, in 750 MHz cable systems, the upper 240 MHz can contain up to 1000 3-Mbps DataStream, each carrying a unique digital address that directs it to a particular set-top box or cable modem (used for video on demand, or VOD). QAM is used in some upstream traffic designs, but is less noise resistant, though more bit-efficient, than QPSK.

It is easier to visualize QAM by looking at 16-QAM. QAM separates points widely and is hence fairly noise immune. The system for 16-QAM combines 4 input bits to produce 1 signal burst. Both phase and amplitude are modulated. Odd-numbered bits in the input stream are combined in pairs to form one of 4 levels which modulate the sine term. Even-numbered bits are similarly combined to modify the cosine term. Sine and cosine terms are then combined.

V(t) = x(t) cos1/2t + y(t)sin1/2t

Figure 2: I-Q diagram or constellation for 16-QAM scheme.

16-QAM has better spectral efficiency than 8-PSK and is less sensitive to noise than 16-PSK because the spacing between symbols are larger (see diagrams below). This is true because the symbols are not all on the same circle; the resultant signals are not all of the same amplitude.

Figure 3: Digital multiplexing of data, video, and voice services in the cable headend.

Quadrature Phase Shift Keying (QPSK)
QPSK (which is QAM without an amplitude component) has become the preferred modulation format for the upstream. QPSK is inherently robust and economical. While other modulation techniques have been proposed with efficiencies higher than the 1.5 bits/Hz of QPSK, these formats have yet to be tested as thoroughly. QPSK has been selected by DAVIC as the upstream modulation format, and is the current front-runner for selection by the IEEE 802.14 committee. QPSK is also used in many satellite systems.

QPSK involves channel hopping until a clear path is found. QPSK is sometimes called four-phase PSK; the phase of the carrier can take on one of 4 values. Each transmitted symbol represents two bits.

00
01
10
11

Acos(wt)
Acos(wt+90)
Acos(wt+180)
Acos(wt+270)

Figure 4: Constellations for QPSK (4-PSK) and 8-PSK

The system is less bit-efficient, but more noise-resistant and has advantages in its ability to operate over long distances with many interfering sources such as those found in a neighborhood cable network. For this reason, QPSK is favored for upstream traffic in cable modem applications. QPSK delivers about 1.5 bits per Hertz of bandwidth used. QPSK can go up to 10 Mbps in cable systems, but uses up a large portion of the available upstream bandwidth. Hence, most symmetrical cable modem products are expected to be limited to 10 Mbps. QPSK is also used for cable-based telephony applications (as well as some set-top box designs). Approximately 50 kHz of bandwidth is required for one DS0 channel (64 kbps). Individual channels are assigned to callers on a per-call basis anywhere within the 6-to-42 MHz band (downstream telephony modulations are different. Up to 72-64 kbps DS0 channels are packaged within a single 3 MHz slot in the 50-to-750 MHz region).

Figure 5: Block diagram of cable modem with QPSK modulation. Source: Hewlett Packard

Synchronous Code Division Multiple Access (S-CDMA)
S-CDMA is a modulation scheme introduced by Terayon Corporation. With ordinary time division multiple access (TDMA) modulations, users share data channels by taking turns accessing the network in different time slots; with ordinary frequency division multiple access (FDMA) modulations, all the time is used but the available frequencies are divided up into multiple channels. With S-CDMA technology, the information is a spread over a wide band of the spectrum and all the frequencies are used all the time. S-CDMA allows for 10 Mbps throughput over each 6 MHz channel, upstream and downstream. The spread spectrum results in 10 Mbps by sending multiple streams of data, each comprised of 64 kbps. These are interleaved within a 6 MHz bandwidth. Individual 64 kbps streams may be allotted to telephony, while multiples of these may be used for videoconferencing, Internet access, etc. S-CDMA, according to Terayon, addresses the cable modem noise ingress problem better than a frequency-hopping scheme because it eliminates the process of searching for clean frequencies. S-CDMA spreads the information over the entire 6 MHz channel and uses encoding to make the transmission noise immune. Also, according to Terayon, the 10 Mbps upstream bandwidth addresses the capacity issues presented by the limited 5-42MHz spectrum.

Vestigal Side Band (VSB)
VSB is the major competing modulation technique (to QAM) for downstream transmission on HFC networks. 32-VSB is one of the modulations used by Zenith for downstream delivery. 2-, 4-, and 8-VSB is also used by Hybrid Networks for upstream data. Using VSB, operators can offer reverse-band channels at 512 kbps using a 300 kHz channel, or they can range speeds between 128 kbps and 2.048 Mbps. Data traveling upstream can be rapidly moved to cleaner areas of the 5-40 MHz spectrum during adverse conditions posed by electrical noise and signal ingress. VSB is the modulation scheme selected by the Grand Alliance for digital television.

QAM and VSB Comparison
The March 1995 issue of the IEEE Transactions on Broadcasting carried a paper written by K. Kerpez of Bellcore which compares QAM and VSB for HFC networks. The paper notes that both modulations are bandwidth efficient and use multiple signal levels to send multiple bits/Hz. VSB conserves bandwidth by only transmitting a single sideband of the modulated RF spectrum while QAM conserves bandwidth by sending two orthogonal sine and cosine carriers in the same frequency band. The paper concludes that the two approaches have practically the same overall performance and costs on an HFC network, although they are incompatible and have many differences.

	16-VSB	64, 256-QAM
Proponents	Zenith, Grand Alliance	Broadcom, AT&T, Scientific-Atlanta, General Instruments
Prior Use	TV	Modems
Receiver	Analog front-end demodulator	All digital
Symbol Rate	10.76 Mbaud	5 Mbaud
Information Bit Rate	38.6 Mbps	27 Mbps (64-QAM) 36 Mbps (256-QAM)

Table 1: Comparison of VSSB and QAM. Source: IEEE Transactions on Broadcasting, Vol. 41, No. 1, March, 1995, page 9

Modulation and Testing
In a paper presented on Testing of Digital Video on Cable TV Systems, engineers from Hewlett Packard noted that a cable system will probably have to manage program material transported in different digital video formats. This presents a myriad of electronics testing issues to the headend system operator, a subject outside the scope of this study. However, the paper did present the following comparison of cable modulation techniques.

Modulation	Advantage	Disadvantage
QAM	High spectral efficiency	Sensitive to signal-to-noise ratio
VSB	Robust carrier and symbol clock recovery	High peak-to-average power ratio
QPSK	Robust in low signal-to-noise environment	Not spectral efficient
COFDM	Robust in high multipath environments	Complex to implement and requires more expensive modulation hardware

Table 2: Comparison of modulation techniques. Source: Hewlett Packard

Modulation and Filtering
While an FCC channel is defined as having a 6 MHz bandwidth, the edges of this are often not used in order to provide "space" between channels and to avoid interference. While an ideal pulse can be used to transmit signals, an ideal pulse is impractical. Waveforms in reality are never perfect in shape. Practical systems use pulses with more bandwidth than the ideal. The bandwidth above the minimum is called excessive bandwidth, usually expressed as a per cent, and involves the use of roll off filters. Using the Nyquist principle, 100% excess bandwidth is twice (2x) the minimum needed. Practical systems typically have excess numbers between 10% and 100%.

Figure 6: Bandwidth and rolloff.

Increasing the excess bandwidth simplifies implementation of the communications system, but reduces spectral efficiency. The type of rolloff filter used is a network design consideration, and affects the throughput possible in a data delivery system. This also explains why there is variation in cable modem specifications from different vendors using the same modulation techniques.

	Bits/Hz	Bits/Hz	Bits/Hz	Mbps	Mbps
Rolloff Filter	0%	20%	100%	20%	100%
QPSK	2	1.67	1	10	2
16-QAM	4	3.33	2	20	4
64-QAM	6	5	3	30	6
256-QAM	8	6.67	4	40	8

Table 3: Effect of filtering on modulation techniques and bandwidth.

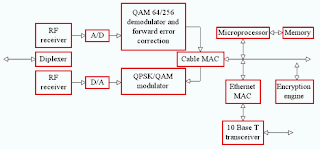

Figure 7: Block diagram of cable modem with QAM/QPSK modulation

Jumping quickly from the cable side to the telephone side of the coin, ADSL is still in its formative stages. The CAP-based ADSL implementations have enabled 1.5 Mbps MPEG-1 video over common two-wire subscriber telephone connections with 64kbps upstream. CAP uses a single QAM signal instead of dividing the channel into multiple tones, and is thus more susceptible to interference. A newer version of the CAP ADSL technology is being marketed under the GlobeSpan label with one-way speeds of over 6 Mbps.

The CAP vs. DMT debate has taken on the nature of a religious holy war within the ADSL community and has stolen much attention and, perhaps, momentum. The CAP crowd has been pushing to make CAP a standard, pointing out that their technology is less complex, cheaper, easier to implement, and meets the large majority of user needs. The DMT team argues that their solution is technologically superior from speed and noise immunity considerations. The two are totally incompatible. Several "box vendors" have announced that they will have products which support both flavors, so they are "modulation neutral" and one vendor, 3Com/US Robotics, has even announced the intention to use a very powerful DSP inside their DSL modem which would be capable of running both modulations (only one at a time, however) depending on the software code which is downloaded to the chip.

According to an opinion expressed by Analog Devices (see companion newsletter article), resolving "the bitter dispute over ADSL line code modulation is crucial in order to expedite system development, speed deployment, and ultimately abate the growing traffic congestion on the nation's telephone infrastructure."

CAP is closely related to QAM; in fact the two are compatible. QAM is well understood. It is a single carrier signal where the data rate is divided into two and modulated onto two orthogonal carriers I and Q using sine and cosine mixers, before being combined and transmitted. CAP operates in the frequency domain, whereas DMT operates in the time domain.

DMT is a multi-carrier modulation system that resembles OFDM. DMT divides signal frequency into many discrete bands or sub-channels. These are independently modulated with a carrier frequency corresponding to the center frequency of the bin and then processed in parallel. DMT's ANSI T1.413 standard specifies 255 sub-carriers, each with a 4 kHz bandwidth. Each channel can be independently modulated from zero to a maximum of 15 bits/Hz (32-QAM on each channel). This allows up to 60 kbps per tone. (DMT-based ADSL uses 249 channels for downstream data, leading to a theoretical maximum of (249 * 60) 14.94 Mbps. At low frequencies, where copper wire attenuation is low and SNR is good, 10 bits/Hz is typical. In unfavorable line conditions modulation can be relaxed to accommodate lower SNR, and 4 bits/Hz is common. The whole process is analogous to simultaneously running 256 modems on a chip. The result is 6 Mbps performance on a 4 kHz phone line.

Figure 8: CAP and DMT Concepts.

Conceptually, CAP symbols last a short time (0.001 sec) but have sizable bandwidth. DMT symbols last a long time (0.250 ms) but occupy a narrow frequency band. The long time period makes them less susceptible to wideband noise spikes.

DMT	CAP
Directs information to subcarriers which are modulated independently	Single-carrier system
More complex to initialize	Faster start-up time
Rate adaptive, steps of 32 kbps	Supports rate adaption by varying the constellation and the bandwidth in steps of 320 kbps
High latency	Low latency
More adept at coping with multiple RFI sources	More resistant to RFI, which is averaged across the wideband of a single carrier
Greater immunity to impulse noise because its symbols are longer
More difficult for echo cancellation	Lower power needs, simpler analog design stages needed
More versatile, flexible, but more complex	Easier to implement
	More field experience and test equipment available for QAM/CAP technology
Patented technique with serious intellectual property rights questions	Patented technique with serious intellectual property rights questions
Few chip sets available	1.5 Mbps chip sets available in volume

Table 4: Comparison of DMT and CAP

It should be pointed out that DMT won a major victory when the ADSL Joint Procurement Consortium, a collection of four RBOCs (Regional Bell Operating Companies), elected to go with a system using both ADSL-DMT and ATM.
